Apollo aluminium battens are available in a range of standard profiles, defined by depth and width.
These profiles can be used individually or combined to create layered, dimensional ceiling designs.
Custom profiles are also available, subject to project requirements, allowing further refinement where a unique architectural expression is required.
Yes! A range of custom profiles are possible, subject to minimum order quantities and additional lead time.
If your design requires a profile outside the standard range, our team can work with you to develop a custom solution.
Batten spacing plays a critical role in how a ceiling is perceived. It influences not only the visual density of the design but also the overall material efficiency.With the Apollo+ system, spacing can be set to exact project requirements, allowing designers to fine-tune the balance between openness and solidity. This level of control ensures the ceiling performs visually while remaining aligned with project budgets.
Beyond aesthetics, spacing also impacts how light, shadow, and depth are experienced across a surface. Wider gaps introduce a lighter, more open feel, allowing greater visibility through the ceiling plane and enhancing the perception of height.
Tighter spacing creates a more solid, monolithic appearance, increasing visual weight and uniformity. Finding the right balance is key. By carefully considering proportion, viewing angles, and the integration of services, designers can achieve a ceiling that not only looks resolved but also uses material efficiently and performs cohesively within the overall architectural intent.
Notes to consider when assessing batten gaps
.png)
Apollo Aluminium Battens are supplied at 6,000mm as standard. Lengths can be cut down to a specific size if required; however, additional charges may apply.
Aluminum is an excellent material as it offers an extensive range of finishing options. These include solid powdercoats, anodising and applying a timber effect powdercoat to achieve a natural timber look with an Aluminum Batten.
We have full access to both the Interpon and Dulux powder coat ranges. Contact our team to explore these range of colour options.
Please note that some finishes may incur additional charges and minimum order quantities may apply.
Apollo aluminium battens are available in 11 timber effect powder coat finishes
Birchwood
Nordic White Oak
European Spruce
Natural Ash
Scarlet Oak
Blonde Oak
Amber Oak
Light Oak
Spotted Gum
Mahogany
Black Ash
PPC
The system has been intentionally streamlined to minimise complexity while maintaining performance and flexibility.
⦿ Top Cross Rail (ceiling track) with pre-indexed batten clips
⦿ Aluminium battens in nominated profiles and finishes
⦿ Batten joiners for consistent alignment
⦿ Top Cross Rail joiners for continuous framing
⦿ Aluminium end caps to conceal cut ends of battens, in a matching finish
Each element is designed to work together seamlessly, reducing installation time and ensuring a clean, consistent outcome.
The Apollo Top Cross Rail is supplied with batten clips pre-indexed at the specified centers for the project, meaning the majority of installation set-out work has been completed prior to the material arriving on-site.
Once the Aluminum Battens are clipped into the TCR, the batten clips become fully concealed.
Internal keyways within each Apollo aluminium batten allow for precision friction-fit joiners, ensuring consistent alignment across every profile.
Joiners are also available in a folded 90-degree option, enabling clean and accurate alignment of mitred battens.
To minimise system components, the same friction-fit joiners used for aligning aluminium battens can also be used to connect Top Cross Rails.
The joiners are inserted into the top slot of the track, ensuring a simple and consistent connection.
Where batten ends are exposed, optional end caps can be specified to achieve a clean, resolved finish.
Supplied powder coated to match the selected batten finish, they provide a seamless visual outcome.
Installation is straightforward, using a simple push-fit connection.
The Apollo+ Concealed Clip Batten system is designed for a clean, efficient ceiling installation that prioritises both precision and buildability.
Battens are clipped directly into pre-indexed Top Cross Rails, which are either suspended via Ø5mm rod droppers or fixed directly to the substrate, depending on project requirements.
.webp)
TCR's are hung at 600mm centres, with corresponding Ø5mm rods and suspension clips at 1200mm centres along the TCR's.

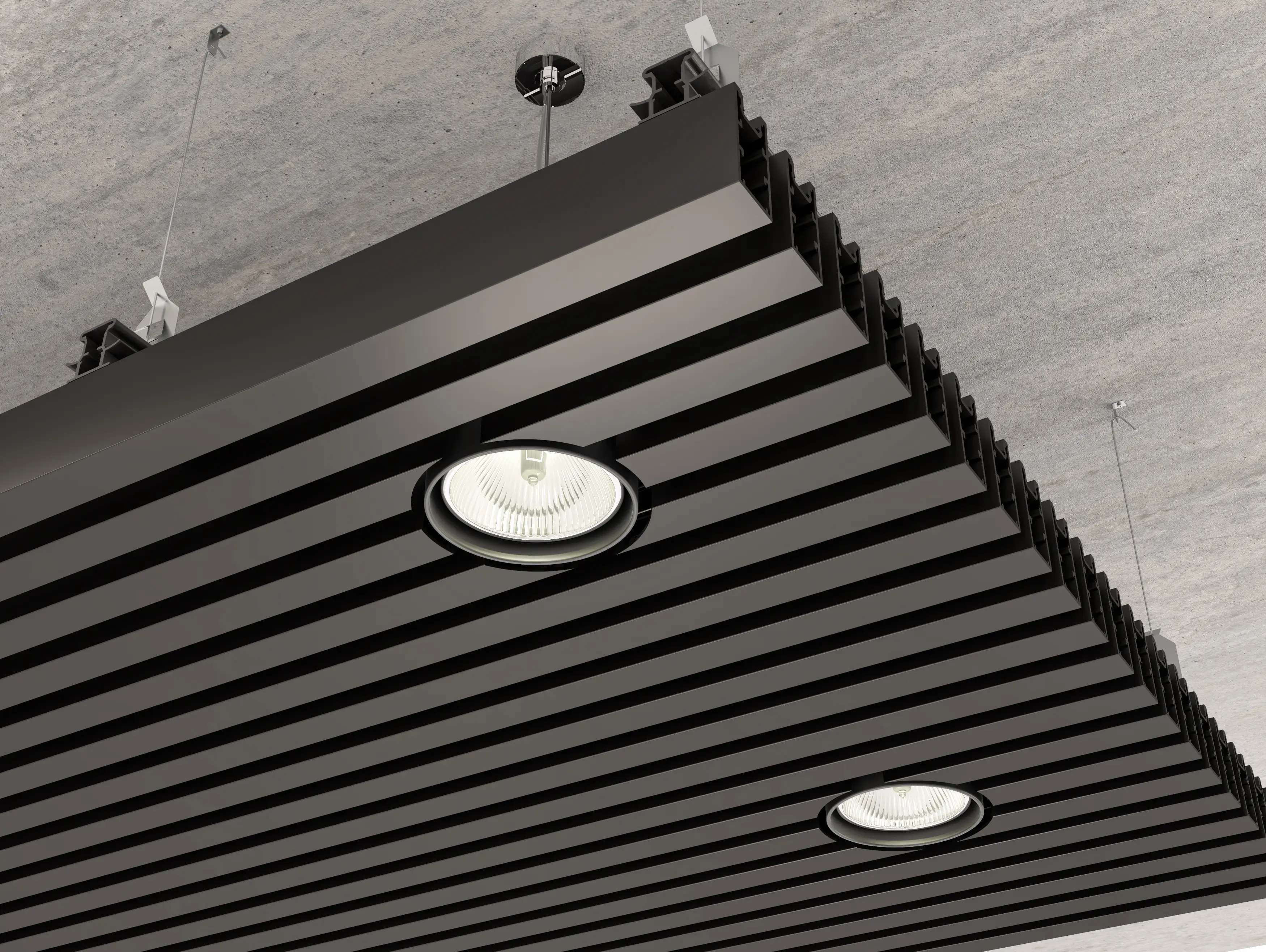

This approach removes the need for complex on-site set-out, ensuring consistent spacing and alignment across the ceiling plane. Services such as downlights can be seamlessly integrated within the batten layout, maintaining the continuity of the linear design while allowing full functionality.
The result is a streamlined installation process that delivers a refined, fully concealed ceiling system with minimal visual interruption.
Apollo Battens are engineered specifically for suspended ceiling applications, using a concealed clip system that delivers a clean, uninterrupted finish.
The system utilises a purpose-designed ceiling track that replaces the standard Top Cross Rail (TCR) in a typical suspended ceiling grid. Tracks can either be suspended or direct-fixed, depending on project requirements, providing flexibility across different ceiling conditions.
Supplied with pre-configured suspension clips and Ø5mm rod for drops up to 1200 mm, the system ensures accurate alignment and a streamlined installation process.
Fixings required to connect the Ø5mm rod droppers to the substrate are to be supplied separately.
A drop-in hatch provides a simple and effective solution for access within an Apollo batten ceiling. Typically constructed on-site by the ceiling contractor, hatches are commonly sized at 600mm x 600mm to align with standard ceiling modules.
To allow for easy removal, the batten clips at each end of the Access Hatch Top Cross Rail are omitted. This enables the rail to rest on the adjacent perpendicular battens rather than locking into place, allowing the hatch to be lifted out as needed.
The result is clean, unobtrusive access to the ceiling plenum without compromising the overall alignment or visual integrity of the batten system.
Where enhanced acoustic performance is required, a semi-rigid 7mm black acoustic backing can be integrated into the Apollo batten system.
Manufactured from polyester and compliant with Group 1 fire ratings, this backing provides effective sound absorption while maintaining a clean ceiling aesthetic. Installed directly against a hard surface, the system achieves an NRC of 0.25, increasing to approximately 0.50 with the inclusion of a 25mm air cavity.
Apollo tracks are designed with integrated 7mm channels, allowing the acoustic backing to slot neatly into place between rails. Panels are pre-cut to suit standard track centres, ensuring fast, accurate installation, while remaining flexible enough for on-site adjustments where required.
For projects demanding higher acoustic performance, additional acoustic batts can be installed behind the system, increasing performance up to an NRC of 1.0.
Caring for your Apollo Aluminium Batten product correctly should greatly enhance its longevity. Below are our recommendations for extending the life of your Aluminium system.
A simple regular clean will minimise the degradation of your finish from exposure to elements such as dirt and grime, which can build-up over time and be detrimental to your finish.
The frequency of a cleaning regiment is dependent on a number of factors (such as environment and exposure). Our recommendation is that the Aluminium Batten system be cleaned once every twelve (12) months and a record of this cleaning is kept.
Optimise Performance & Cleaning
All documentation – brochures, datasheets, fire certificates, warranties and more – are available in our Resource Hub.
Download what you need, or connect with our team for a design consultation to explore the right solution for your project. Can't find what you're looking for... give our Australian-based team a call on 03 9580 7800.
