STUDCO TOP HATS

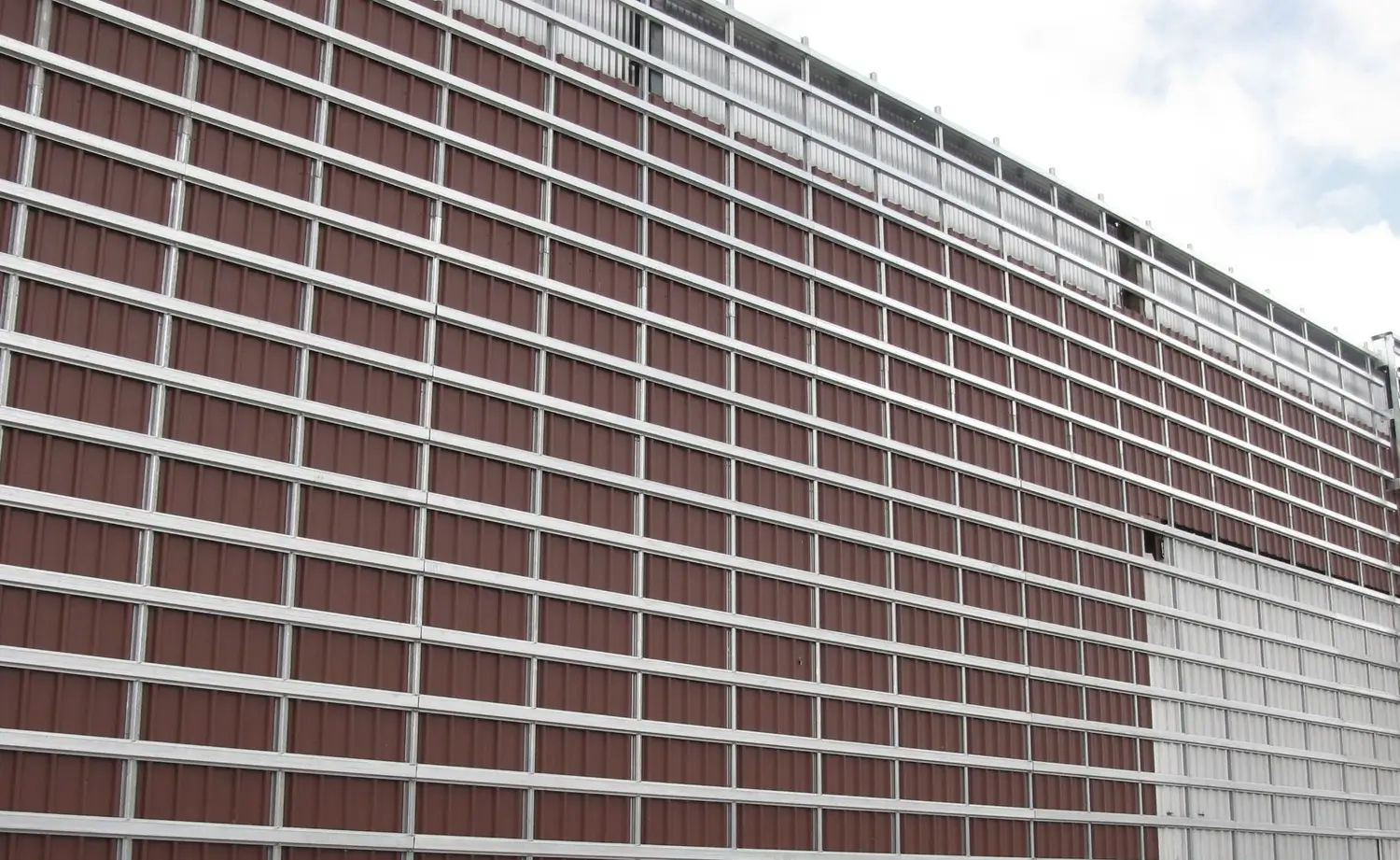

Studco Top Hats are a versatile and reliable framing solution commonly used to support façade linings across both commercial and residential projects.
Suitable for a wide range of cladding materials and able to be installed horizontally or vertically, they also offer a practical option for selected internal applications where heavier loads or higher design pressures are required.
Studco Top Hats can also be used in internal applications where higher loads or greater design pressures are required. Typically screw-fixed directly to the structure through the outer legs, they provide a stable fixing face for a wide range of lining materials, with fixing methods determined by the lining manufacturer.

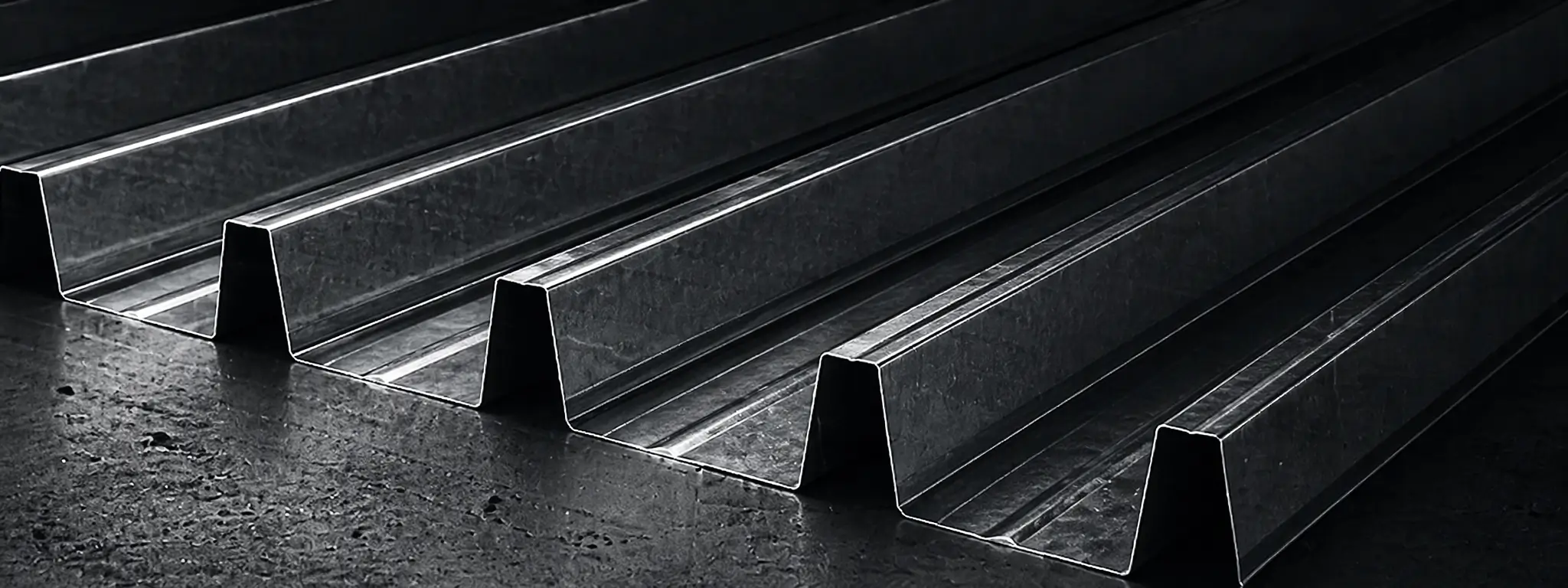

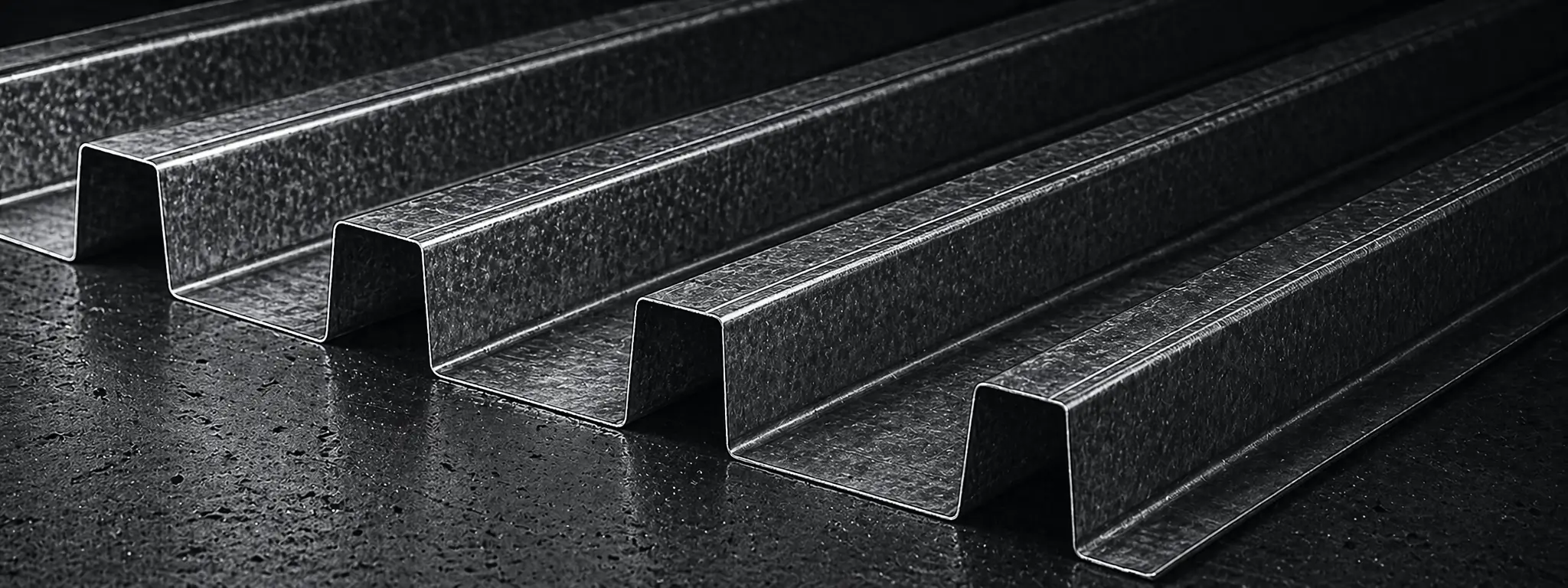

The Studco Top Hat range includes both Square Leg and Angled Leg profiles to suit different project requirements, along with Square Leg Top Hat Brackets to help achieve a straight, consistent finish across external façade applications.
JS5015 Top Hat
JS12035 Top Hat
JS7535 Top Hat
JS5035 Top Hat
JS5050 Top Hat
TH64 Angled Top Hat
TH75 Angled Top Hat
TH96 Angled Top Hat
TH120 Angled Top Hat

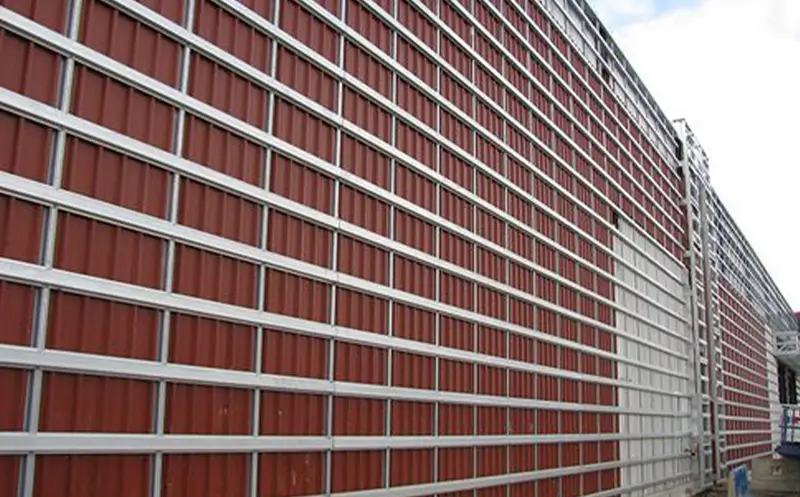

Top Hat Installation
Studco’s Square Leg Top Hats are designed for applications where higher wind pressures and heavier loads need to be accommodated, with the required profile selected to suit project-specific performance demands. Once installed, they provide a strong and reliable support for cladding systems, helping create durable external façades. Manufactured from high-grade galvanised steel, Studco’s premium top hat range delivers enhanced strength, long-term durability and dependable performance through its precision roll-formed design.
JS5035 Top Hat
⦿ Can be installed vertically or horizontally to suit project requirements
⦿ Available in 0.75mm and 1.15mm gauge steel
⦿ Supplied in 3600mm and 6000mm lengths
⦿ The 120mm wide top hat includes expansion zones for limited movement where lining boards join
⦿ Strengthening ribs to the 24mm, 35mm and 50mm profiles improve stiffness and structural performance
⦿ For express jointed façades, the recessed fixing face allows for a backing strip and weather-tight seal
⦿ A centrally located V-groove helps self-drilling screws find centre quickly
⦿ Manufactured in Australia from Australian steel
Studco Angled Top Hats are a taller, narrower top hat profile designed to create greater cavity depth behind the façade or lining system. This increased air gap can support improved acoustic performance, enhance thermal efficiency and provide additional space for services or installation requirements, making them a practical solution for projects where both performance and buildability are important.

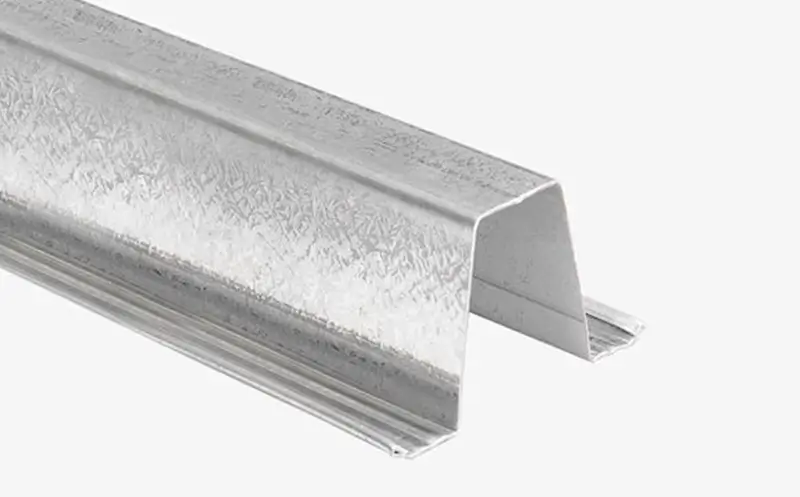

TH64 Angled Top Hat
⦿ Available in 4800mm and 6000mm lengths
⦿ A centrally located V-groove on the fixing leg helps self-drilling screws find centre easily
⦿ Suitable for a wide range of lining materials, including fibre cement, aluminium composite, AAC panels and timber linings
⦿ Made in Australia from high-quality Australian steel
Studco Steel Battens are designed to sit between the roof structure and the external roofing finish, providing a strong, stable and reliable fixing surface for the selected roof material. They help support accurate installation, improve load distribution and create an efficient substructure for a wide range of external roofing applications.
Roof Batten THM40
⦿ Flat flanges provide a clean, stable surface for direct fixing
⦿ Hemmed flanges support safer, easier handling on site
⦿ Manufactured in Australia from high-quality Australian steel
