lINEAR
CEILING SYSTEMS
Linear ceiling systems introduce direction, rhythm and clarity to the ceiling plane, using repeated elements to shape a strong architectural language.
Defined by parallel lines and consistent spacing, they create a sense of movement while maintaining a clean and ordered appearance.
LINEAR RHYTHM
DESIGN CLARITY
VISUAL CONTINUITY
Their linear nature allows services such as lighting, sprinklers and air distribution to be coordinated within or between the system, supporting both visual continuity and practical performance. The result is a ceiling that feels cohesive, controlled and aligned with the broader architectural intent.

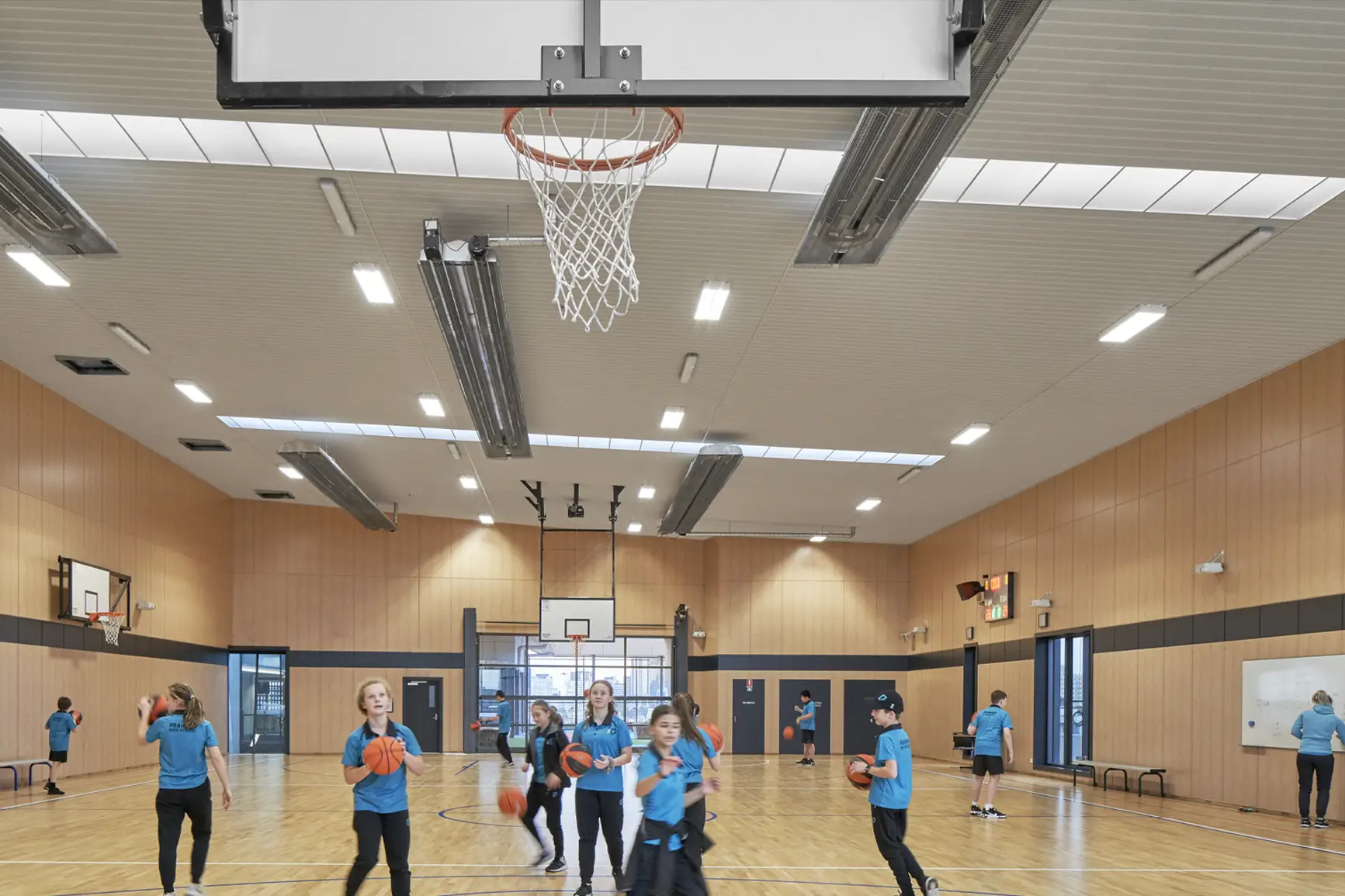

Coruline
Sheet Size
.png)
160mm wide x 6000mm long max.
Other lengths are available upon request.
Perforation
.png)
2.5mm perforation @ 15% open area
Note: Also available unperforated.
Grid System
.png)
Fully concealed one-way T-Bar suspension system.
Panels screw fixed, via concealed method.
Finishes
.png)
Can be manufactured from both Aluminium & Zincalume.
Aluminium = Powder coat & Anodised
Zincalume = Powder coat, Colourbond & Clear Lacquer
Acoustics
.png)

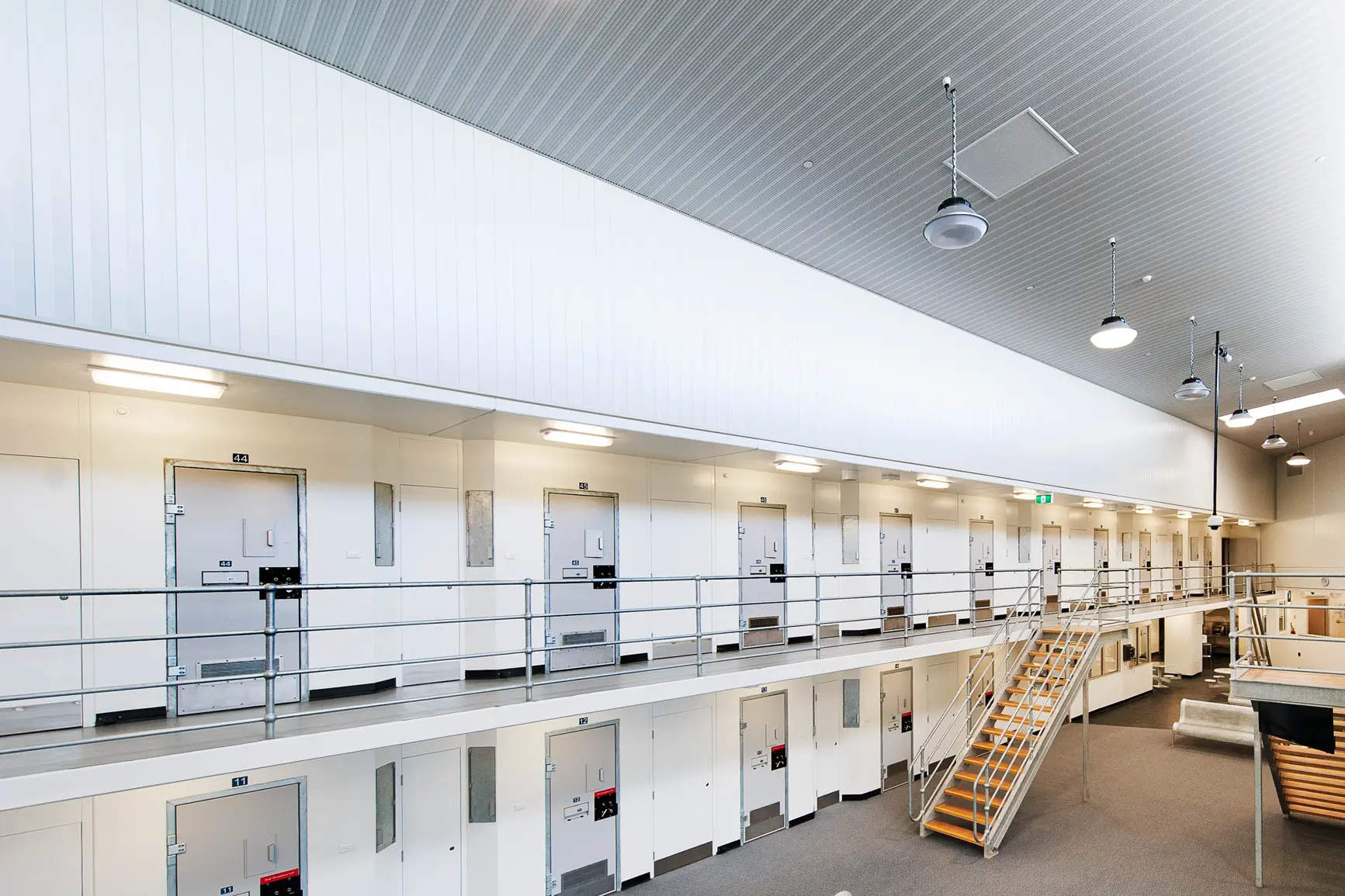

Spac Deckform
Sheet Size
.png)
150mm wide x 6000mm long max.
Other lengths are available upon request.
Perforation
.png)
2.5mm perforation @ 15% open area.
Note: Also available unperforated.
Grid System
.png)
Fully concealed two-way Heavy Duty Carrier and T-Bar suspension system with concealed screw-fixed panels — the only compliant solution purpose-designed for high-security environments including correctional facilities.
Finishes
.png)
Manufactured from Zincalume.
Zincalume = Powder coat, Colourbond, Clear Lacquer & Baked Enamel
Acoustics
.png)

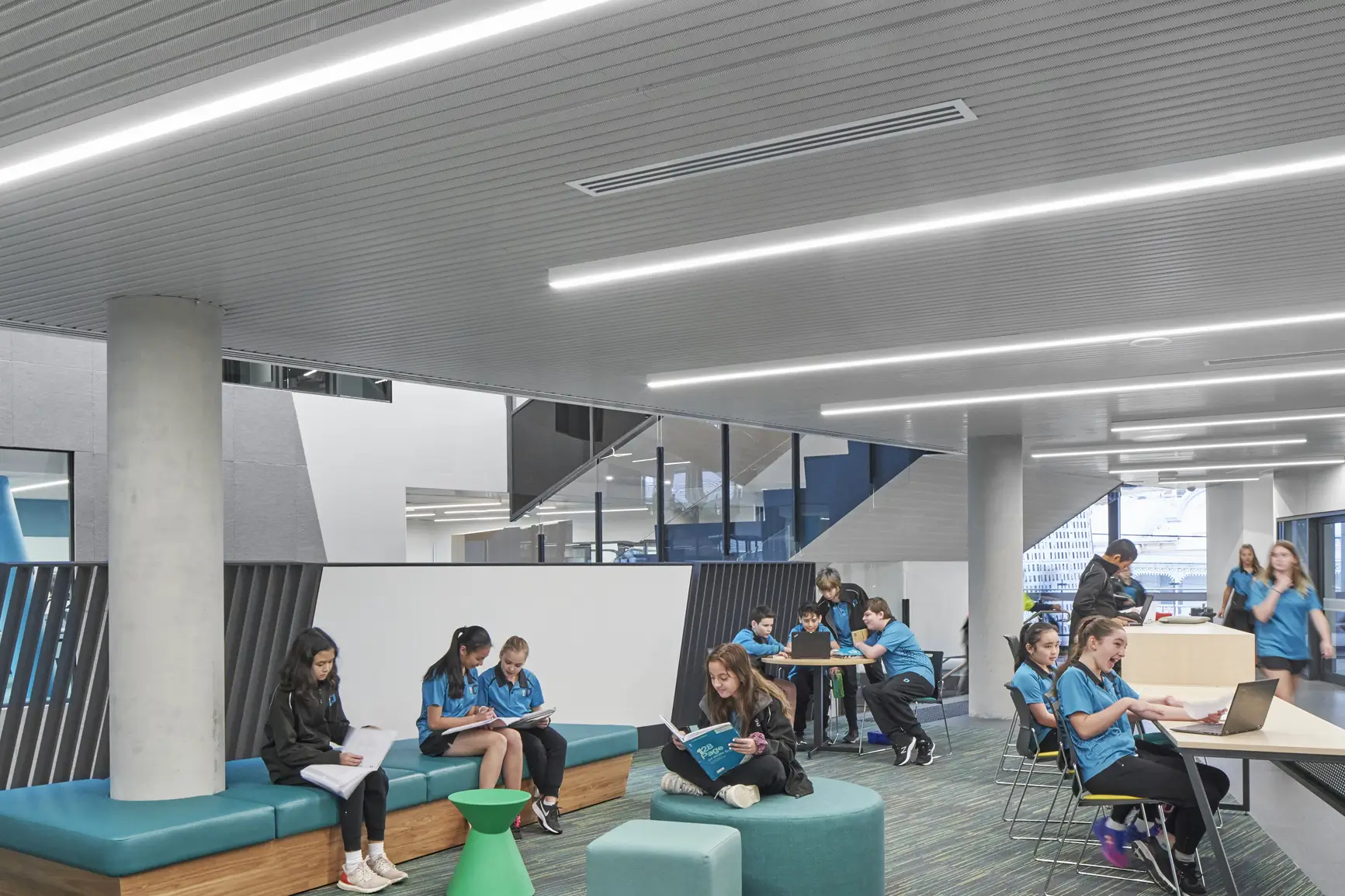

Linear 5
Sheet Size
.png)
81mm wide x 6000mm long max.
Other lengths are available upon request.
Installed at 100mm centres, with a 19mm gap.
Perforation
.png)
2.5mm perforation @ 15% open area
Note: Also available unperforated.
Grid System
.png)
Fully concealed one-way T-Bar suspension system.
Panels are snapped into clips on the T-Bar carrier.
Finishes
.png)
Manufactured from Zincalume.
Zincalume = Powder coat, Colourbond, Clear Lacquer & Baked Enamel
Acoustics
.png)
.png)
All documentation – brochures, datasheets, warranties and more – are available in our Resource Hub.
Download what you need, or connect with our team for a design consultation to explore the right solution for your project. Can't find what you're looking for... give our Australian-based team a call on 03 9580 7800.
