DEPTH. TEXTURE. IMPACT.

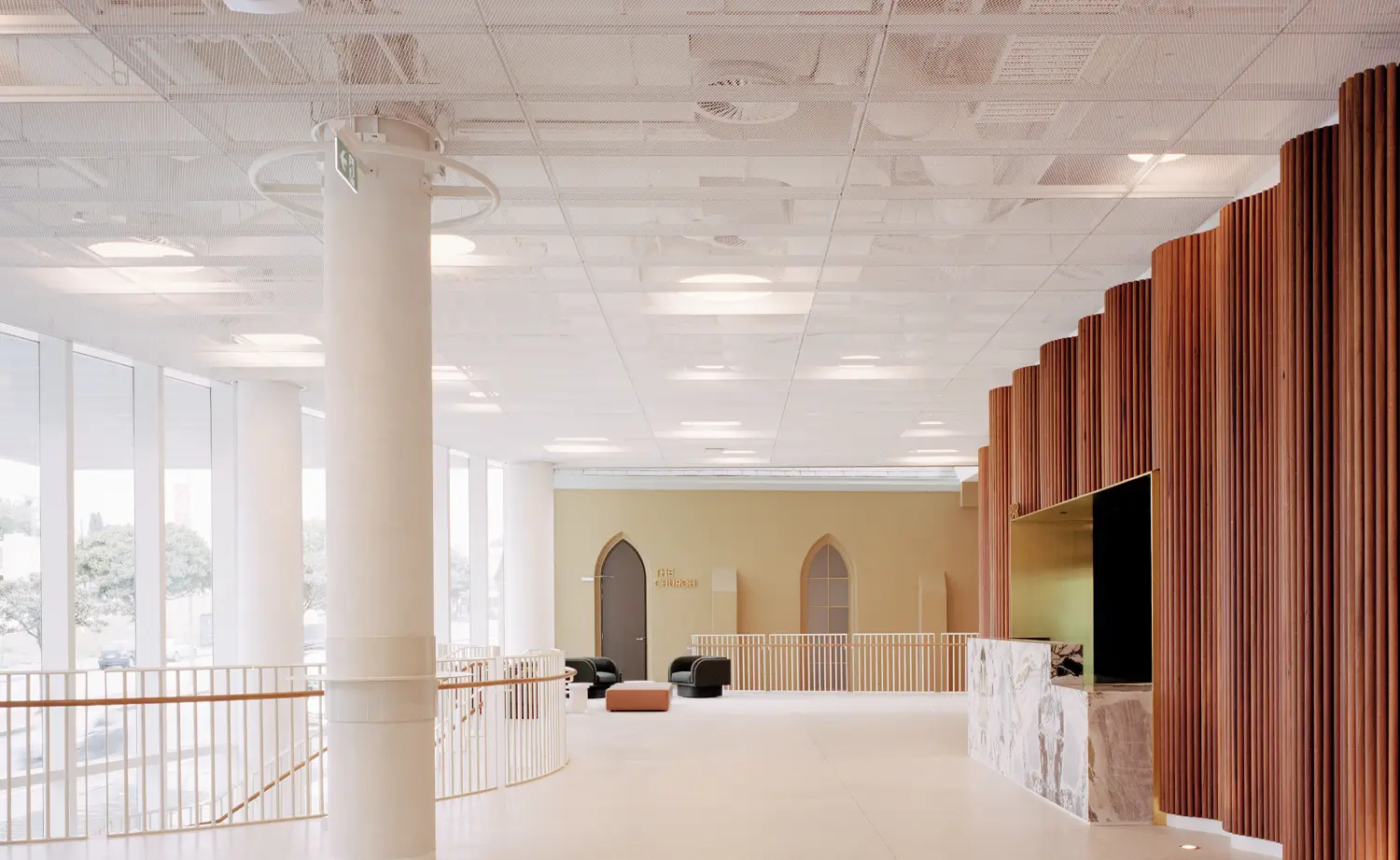

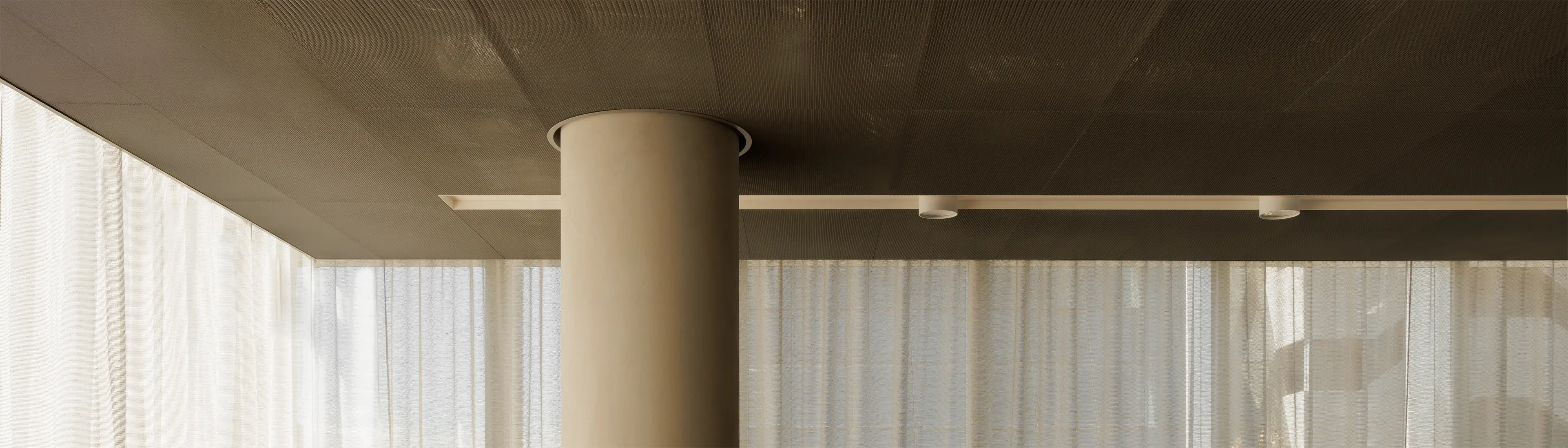

Becoming increasingly popular in interior architecture, Expanded Mesh ceiling systems enable designers to deliver striking, high-performance ceiling solutions for projects looking to make a dramatic visual statement.
Crafted by stretching and shaping metal to create patterned openings, Expanded Mesh offers distinctive depth and texture.
The result is a dynamic ceiling plane that, depending on a user’s space in the environment, allows either an open or closed view into the ceiling plenum above.
Bespoke Design
From curved to trapezoidal panels, custom perforation patterns and refined finishes - metal ceiling design is in your hands.
ACOUSTICS
Designed for the highest levels of both sound absorption & attenuation, helping you craft spaces of comfort & control
Extensive Range
Concealed & exposed grids, endless tile sizes, perforation patterns and acoustic options.
Core Systems
We partner with SAS International to offer you compliant, specification-ready systems that meet Australian Standards, offer documented performance data and integrate cleanly with services.Expanded Mesh is compatible with several proprietary MBS x SAS ceiling systems, allowing you to align visual intent with structural, suspension & compliance requirements.

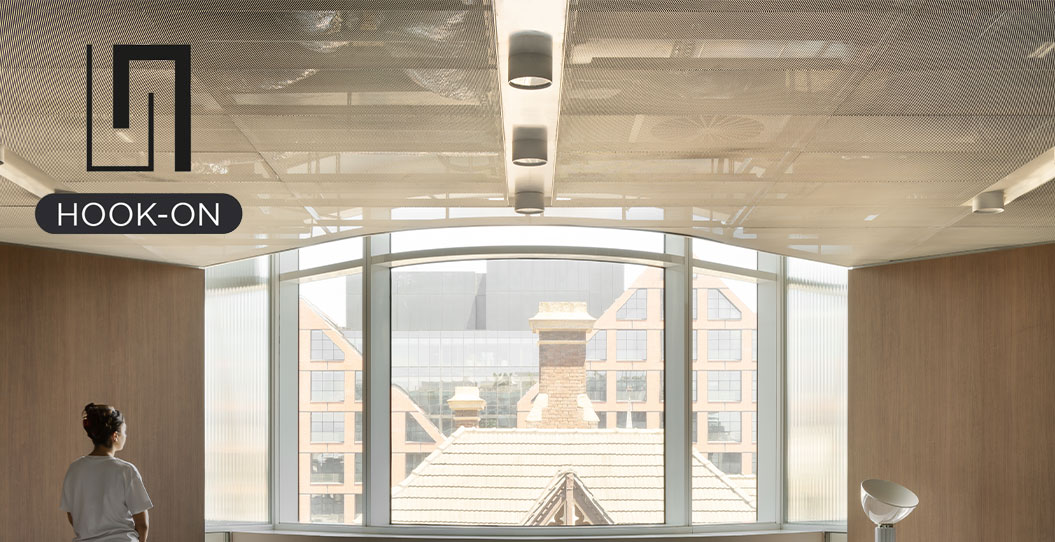

MBS SAS200
Hook-On Ceiling
| 300 x 300 | 500 x 500 |
| 300 x 600 | 500 x 1500 |
| 300 x 900 | 600 x 600 |
| 300 x 1200 | 600 x 1200 |
| 300 x 1500 | 750 x 750 with 2mm bevel |
All tiles manufactured with hinge-down access tabs
Polyester Powder Coat RAL 9003 as standard.
All other RAL colours available by request
1522 & 1820 as standard.
Other patterns available by request
Up to 1.0 NRC & 27 dB

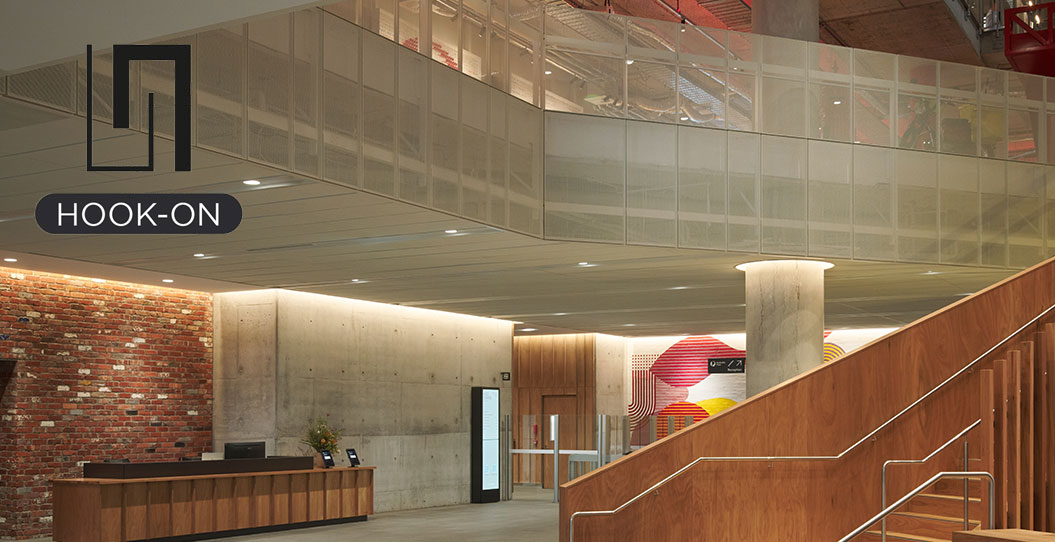

MBS SAS205
Corridor Ceiling
| 600 x 600 | 1500 x 300 |
| 1200 x 300 | 1500 x 500 |
| 1200 x 600 | 1800 x 600 |
Tiles can be up to 3000mm in length & no less than 300mm wide. Bespoke sizes available on request.
Tiles can be lifted & removed from the concealed grid
Polyester Powder Coat RAL 9003 as standard.
All other RAL colours available by request
1522 & 1820 as standard.
Other patterns available by request
Up to 1.0 NRC & 49 dB

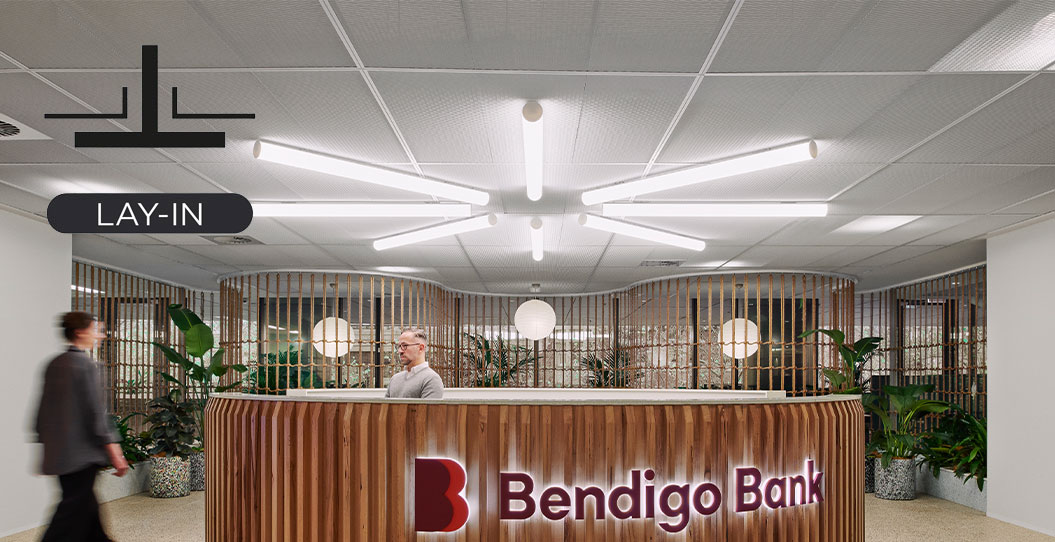

MBS SAS310
Top-Hat Modular or T-Bar Ceiling
| 600 x 600 | 1500 x 300 |
| 1200 x 300 | 1500 x 500 |
| 1200 x 600 | - |
Tiles can be up to 3000mm in length & no less than 300mm wide. Bespoke sizes available on request.
Tiles can be lifted & removed from the exposed grid
Polyester Powder Coat RAL 9003 as standard.
All other RAL colours available by request
1522 & 1820 as standard.
Other patterns available by request
Up to 1.0 NRC & 49 dB
MBS SAS350a
Lay-On Ceiling (One Way Grid)
| 300 x 300 | 500 x 500 |
| 300 x 600 | 500 x 1500 |
| 300 x 900 | 600 x 600 |
| 300 x 1200 | 600 x 1200 |
| 300 x 1500 | 750 x 750 with 2mm bevel |
All tiles manufactured with hinge-down access tabs
Polyester Powder Coat RAL 9003 as standard.
All other RAL colours available by request
1522 & 1820 as standard.
Other patterns available by request
Up to 1.0 NRC & 27 dB
MBS SAS600
Raft Ceiling
| 600 x 600 | 1500 x 300 |
| 1200 x 300 | 1500 x 500 |
| 1200 x 600 | 1800 x 600 |
Tiles can be up to 3000mm in length & no less than 300mm wide. Bespoke sizes available on request.
Tiles can be lifted & removed from the concealed grid
Polyester Powder Coat RAL 9003 as standard.
All other RAL colours available by request
1522 & 1820 as standard.
Other patterns available by request
Up to 1.0 NRC & 49 dB
MBS SAS150
Clip-In Ceiling
| 600 x 600 | 1500 x 300 |
| 1200 x 300 | 1500 x 500 |
| 1200 x 600 | - |
Tiles can be up to 3000mm in length & no less than 300mm wide. Bespoke sizes available on request.
Tiles can be lifted & removed from the exposed grid
Polyester Powder Coat RAL 9003 as standard.
All other RAL colours available by request
1522 & 1820 as standard.
Other patterns available by request
Up to 1.0 NRC & 49 dB
Mesh Ceiling Applications
Ideal for projects where ceiling surfaces contribute to the design narrative:
- Workplace environments seeking transparency and service integration
- Transport hubs requiring durability and visibility
- Retail and hospitality venues with bold, brand-led finishes
- Educational facilities balancing acoustic and design needs
Key Advantages of our Expanded Mesh Ceiling Systems:
Design Versatility: Mesh patterns in rhombus, diamond, hexagonal, woven and square profiles.
Customisable Panel Sizes: Panels up to 3m2, manufactured to suit unique design geometry.
Open & Closed Views: Light and shadow interplay change with the viewer’s position.
Acoustic Integration: Compatible with absorptive backings for targeted sound control.
Orientation Options: Tailored directionality for dynamic visual effects.
Finish Options: Powdercoated, anodised, and textured finishes to match your design intent.
