METAL
CEILING SYSTEMS

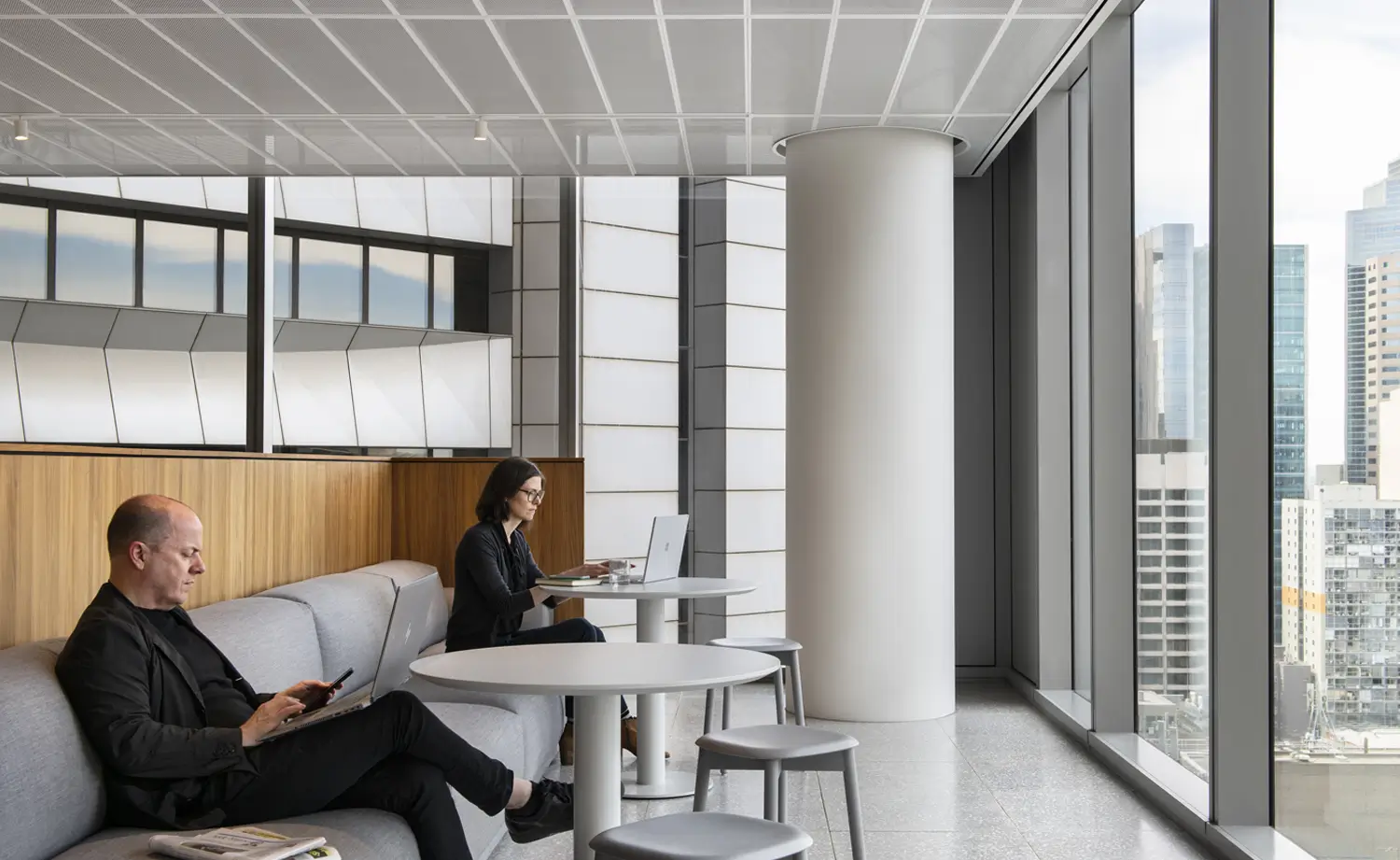

Suspended metal ceilings deliver a considered balance of acoustic performance and architectural clarity within the ceiling plane. Defined by crisp lines, precise detailing and a refined materiality, they introduce a sense of order and permanence to interior spaces.
Through customisable perforation patterns, integrated acoustic backing and a wide range of finishes, metal ceilings can be tuned to both control sound and shape the visual rhythm of a space.
DESIGN Versatility
Architectural ImpacT
Acoustic Control
Light interacts differently across their surfaces - from soft matte tones to more reflective finishes - allowing the ceiling to subtly shift in character throughout the day. Available in a variety of panel formats and bespoke configurations, metal ceilings offer durability, low maintenance and limitless design flexibility.
At the heart of our offering are three versatile metal ceiling systems - Clip-In, Hook-On, and Lay-On - forming the foundation of our core MBS SAS range. Designed for performance, precision and architectural flexibility, each system caters to different installation needs and design intentions.

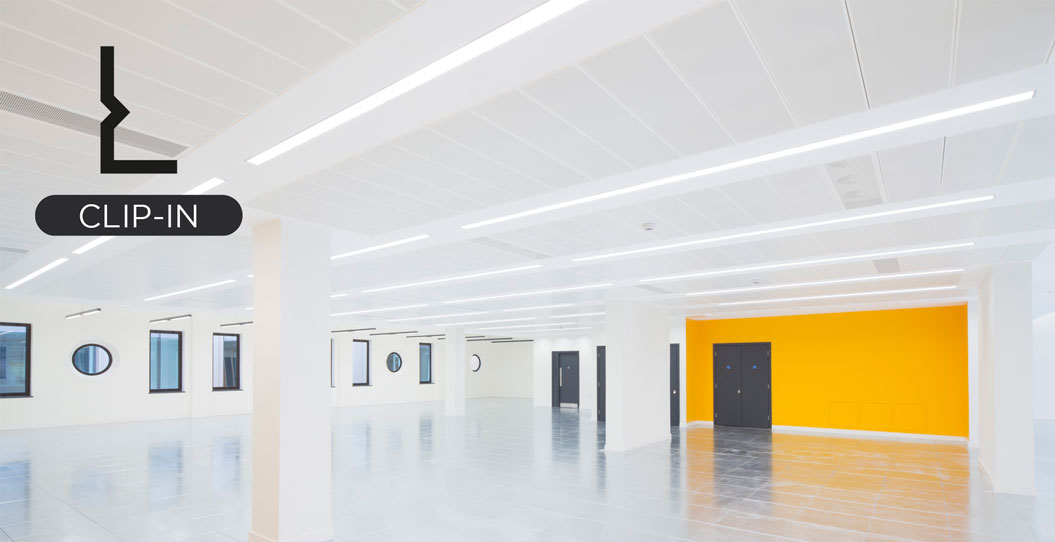

MBS SAS150
Sizes
.png)
Standard Module Sizes (mm) with 4mm bevel.
Access
.png)
All tiles manufactured with hinge-down access tabs.
The void is completely accessible with the use of a simple tool.
Alternatively, in areas where security is paramount optional security clips are available. This restricts access to the void to minimise security concerns.
Service Integration
.png)
Tiles can be formed with apertures during manufacturing and post painted for integration with lights and other services.
Please note MBS SAS150 tiles will support loads up to 2.5Kg.
Pattresses can be used to support loadsup to 6Kg. Anything in excess of 6Kg requires independent suspension.
Finish
.png)
Polyester Powder Coat RAL 9003 as standard.All other RAL colours available by request.
Perforations
.png)
1522 & 1820 as standard. Other patterns available by request:
PERFORATION PATTERNSAcoustics
.png)
Up to 1.0 NRC & 27 dB

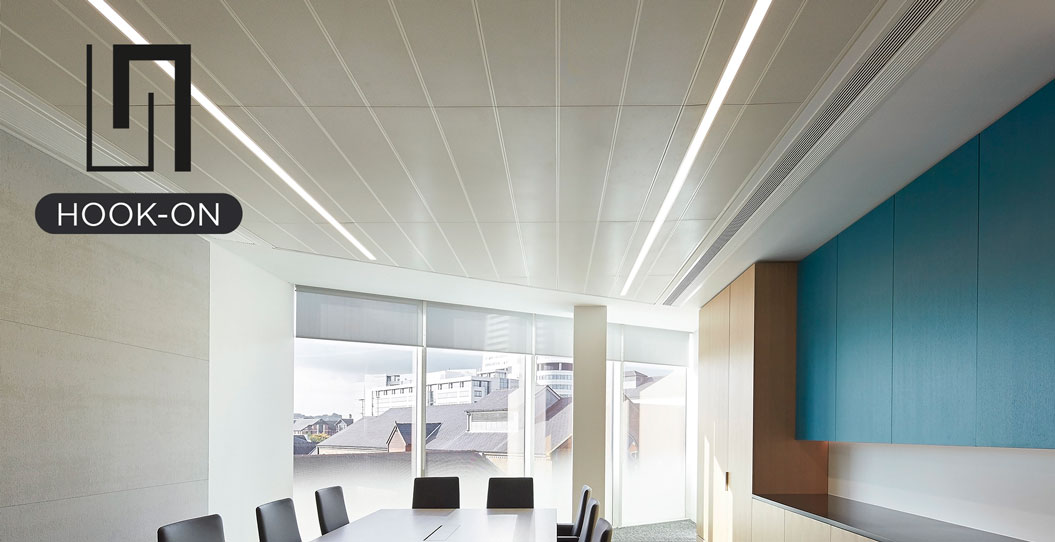

MBS SAS200
Sizes
.png)
Tiles can be up to 3000mm in length & no less than 300mm wide.
Bespoke sizes available on request.
Standard Module Sizes (mm):
Access
.png)
Tiles can be lifted & removed from the concealed grid.
Service Integration
.png)
Tiles can be formed with aperturesduring manufacturing and post painted for integration with lights andother services.
Please note Loads in excess of 6Kg require independent suspension.
Finish
.png)
Polyester Powder Coat RAL 9003 as standard.
All other RAL colours available by request.
Perforations
.png)
1522 & 1820 as standard.
Other patterns available by request:
Acoustics
.png)
Up to 1.0 NRC & 49 dB
Key Design Element
.png)
MBS SAS 200 achieves a butt joint along all panel edges.

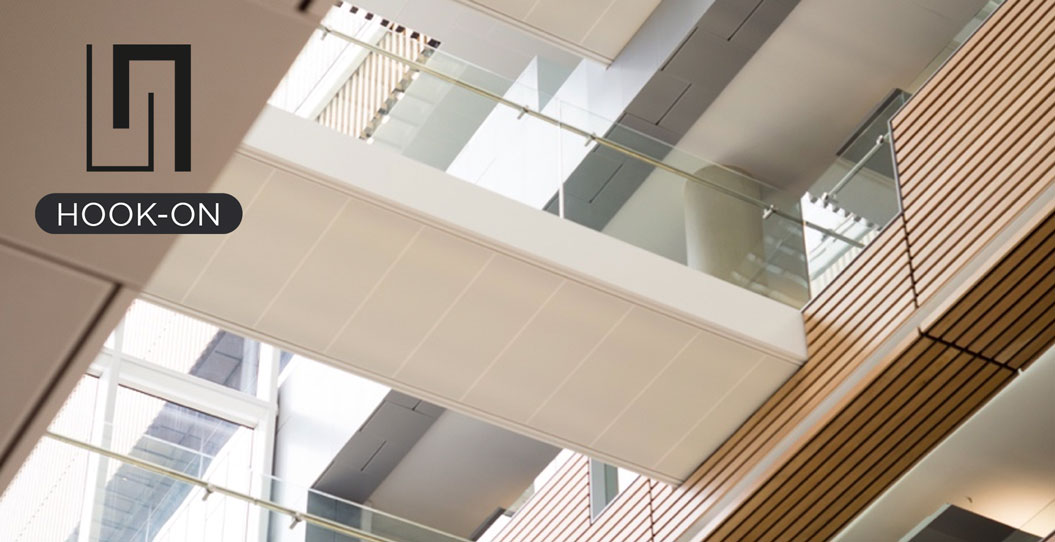

MBS SAS205
Sizes
.png)
Tiles can be up to 3000mm in length & no less than 300mm wide.
Bespoke sizes available on request.
Standard Module Sizes (mm):
Access
.png)
Tiles can be lifted & removed from the concealed grid.
Service Integration
.png)
Tiles can be formed with aperturesduring manufacturing and postpainted for integration with lightsand other services.
Please note Loads in excess of 6Kg require independent suspension.
Finish
.png)
Polyester Powder Coat RAL 9003 as standard.
All other RAL colours available by request.
Perforations
.png)
1522 & 1820 as standard.
Other patterns available by request:
Acoustics
.png)
Up to 1.0 NRC & 49 dB
Key Design Element
.png)
MBS SAS 205 achieves an express gap along a minimum of one panel edge (min 10mm).
MBS SAS310
Sizes
.png)
Tiles can be up to 3000mm in length & no less than 300mm wide.
Bespoke sizes available on request.
Standard Module Sizes (mm):
Access
.png)
Tiles can be lifted & removed from the concealed grid.
Service Integration
.png)
Ceiling tiles can be formed withapertures during manufacturing and post painted for integration with lightsand other services.
MBS SAS310 panels may require stiffeners to support centrally mounted lighting.
Please note Additional loads applied to MBS SAS310 ceiling tiles must not exceed 7Kg. Anything inexcess of 7Kg requires independent suspension.
Finish
.png)
Polyester Powder Coat RAL 9003 as standard.
All other RAL colours available by request.
Perforations
.png)
1522 & 1820 as standard.
Other patterns available by request:
Acoustics
.png)
Up to 1.0 NRC & 49 dB

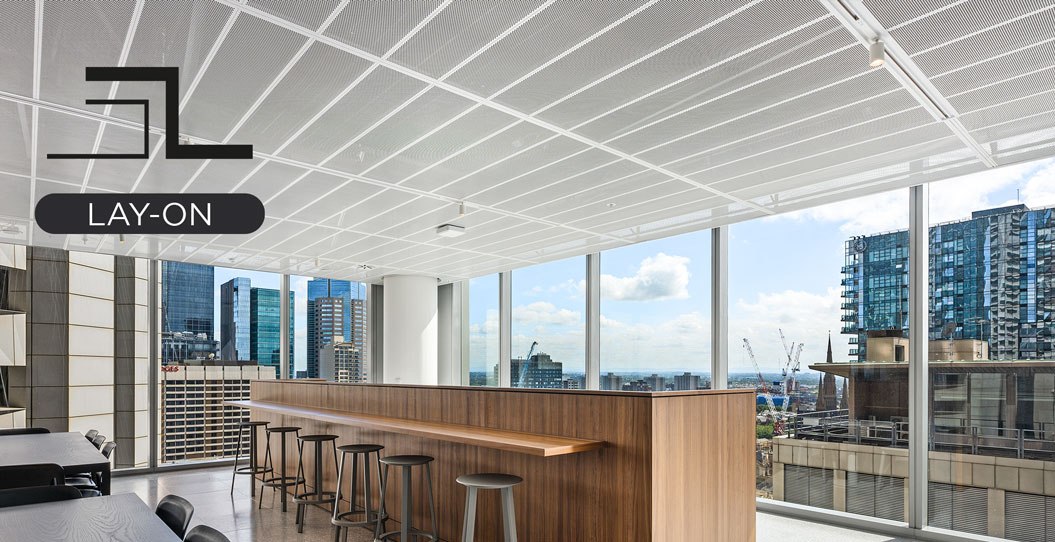

MBS SAS330a
Sizes
.png)
Tiles can be up to 3000mm in length & no less than 300mm wide.
Bespoke sizes available on request.
Standard Module Sizes (mm):
Access
.png)
Tiles can be lifted & removed from the exposed grid.
Service Integration
.png)
Ceiling tiles and C-Profiles can be formed with apertures during manufacturing and post painted for integration with lights and other services.
MBS SAS330a panels may require stiffeners to support centrally mounted lighting.
Please note Additional loads applied to MBS SAS330a ceiling tiles must not exceed 7Kg. Anything inexcess of 7Kg requires independent suspension.
Finish
.png)
Polyester Powder Coat RAL 9003 as standard.
All other RAL colours available by request.
Perforations
.png)
1522 & 1820 as standard.
Other patterns available by request:
Acoustics
.png)
Up to 1.0 NRC & 49 dB

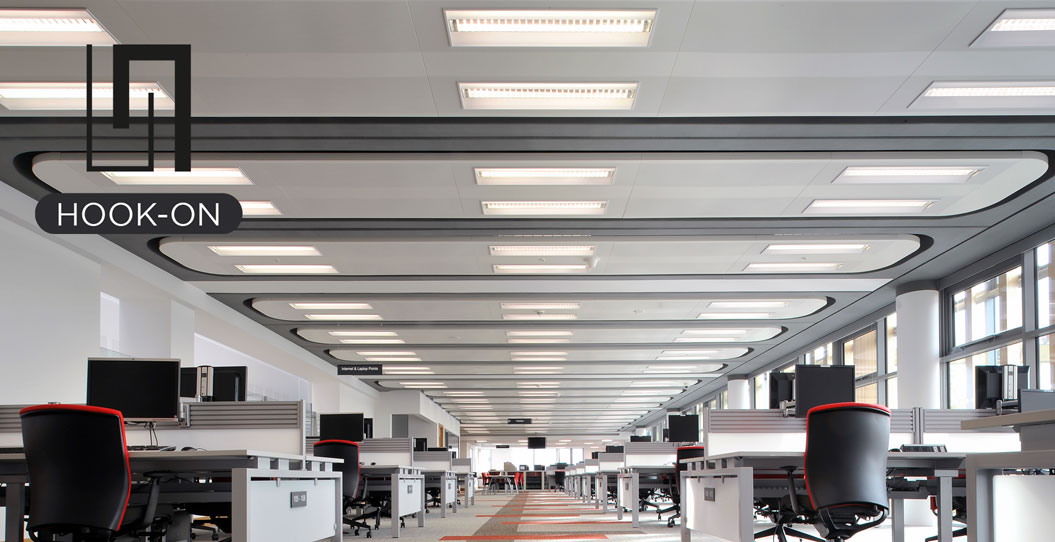

MBS SAS600
Sizes
.png)
Standard Module Sizes (mm):
Module Shapes
Rafts and modules can be manufactured either flat or curved.
Curved designs allow a larger acoustic area to be incorporated into the design.
Bespoke module sizes and shapes areavailable on request.
Access
.png)
Tiles can be lifted & removed from the exposed grid.
Cross Ventilation
.png)
Ceiling mounted acoustic rafts provide acoustic absorption whilst allowing the concrete soffit to be fully exposed for energy-efficient natural cross ventilation cooling.
Service Integration
.png)
Rafts and modules can be manufactured with integrated LED lighting and other M&E services.
Combination Ceilings
.png)
Rafts and modules provide high levels of acoustic absorption.
For demanding environments they can be installed in conjunction with a suspended metal ceiling.
Finish
.png)
Polyester Powder Coat RAL 9003 as standard.
All other RAL colours available by request.
Perforations
.png)
1522 & 1820 as standard.
Other patterns available by request:
Acoustics
.png)
Up to 1.0 NRC & 49 dB

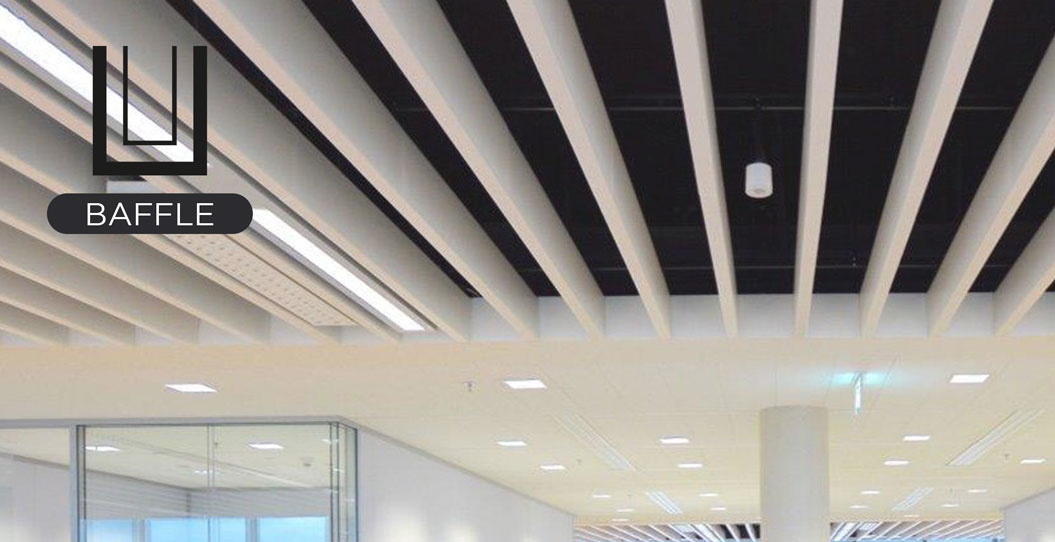

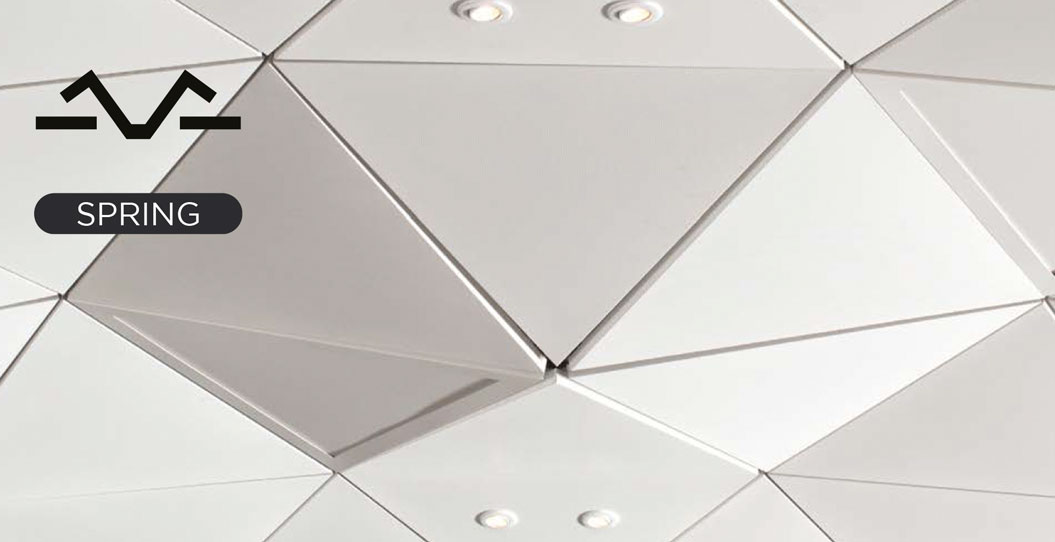

When it comes to metal ceilings, the design possibilities are virtually endless. Beyond our core systems, we offer a diverse range of additional solutions - from corridor ceilings and modular lay-ins to acoustic baffles, rafts and even sculptural polynode panels.
.png)
Each system is engineered to meet specific functional, acoustic, and aesthetic goals, allowing architects to push creative boundaries while maintaining technical performance.
Whether you need seamless integration, standout geometry or advanced acoustic control, we have a system to match.



.png)
Metal ceilings introduce precision, durability and a refined material clarity to the ceiling plane, making them a powerful tool for shaping clean, high-performance architectural environments.
Architectural Clarity & Precision:
Metal delivers crisp lines and consistent geometry, enabling highly resolved ceiling designs that feel ordered, controlled and intentional.
Design Versatility:
Metal integrates seamlessly across a wide range of architectural styles, from contemporary commercial interiors to transport, education and civic environments.
Profile & Finish Flexibility:
A broad selection of panel formats, perforation patterns and finishes allows designers to tailor ceiling systems to suit both aesthetic and functional requirements.
Acoustic Performance:
Metal ceiling systems can be paired with acoustic backings and perforations to manage reverberation and support sound control in shared environments.
Non-Combustible Performance:
Metal ceilings meet stringent fire compliance requirements, making them suitable for applications where safety and performance are critical.
Durability & Stability:
Metal maintains its form and finish over time, resisting impact, moisture and environmental variation in demanding conditions.
Lightweight System Performance:
Lightweight construction reduces ceiling loads while supporting efficient installation and coordination on site.
Low Maintenance:
Robust finishes and corrosion resistance minimise ongoing maintenance, making metal a practical long-term solution.
Longevity & Lifecycle Value:
Metal ceiling systems offer extended service life, reducing the need for replacement and supporting whole-of-life cost efficiency.

.png)
Metal ceiling systems offer exceptional design flexibility, technical performance, and long-term durability across a wide range of built environments. From high-traffic public spaces to refined commercial interiors, metal ceilings support acoustic control, fire compliance, hygiene requirements, and architectural expression -making them a reliable solution wherever performance and aesthetics must work in balance.

.png)
All documentation – brochures, datasheets, warranties and more – are available in our Resource Hub.
Download what you need, or connect with our team for a design consultation to explore the right solution for your project. Can't find what you're looking for... give our Australian-based team a call on 03 9580 7800.
