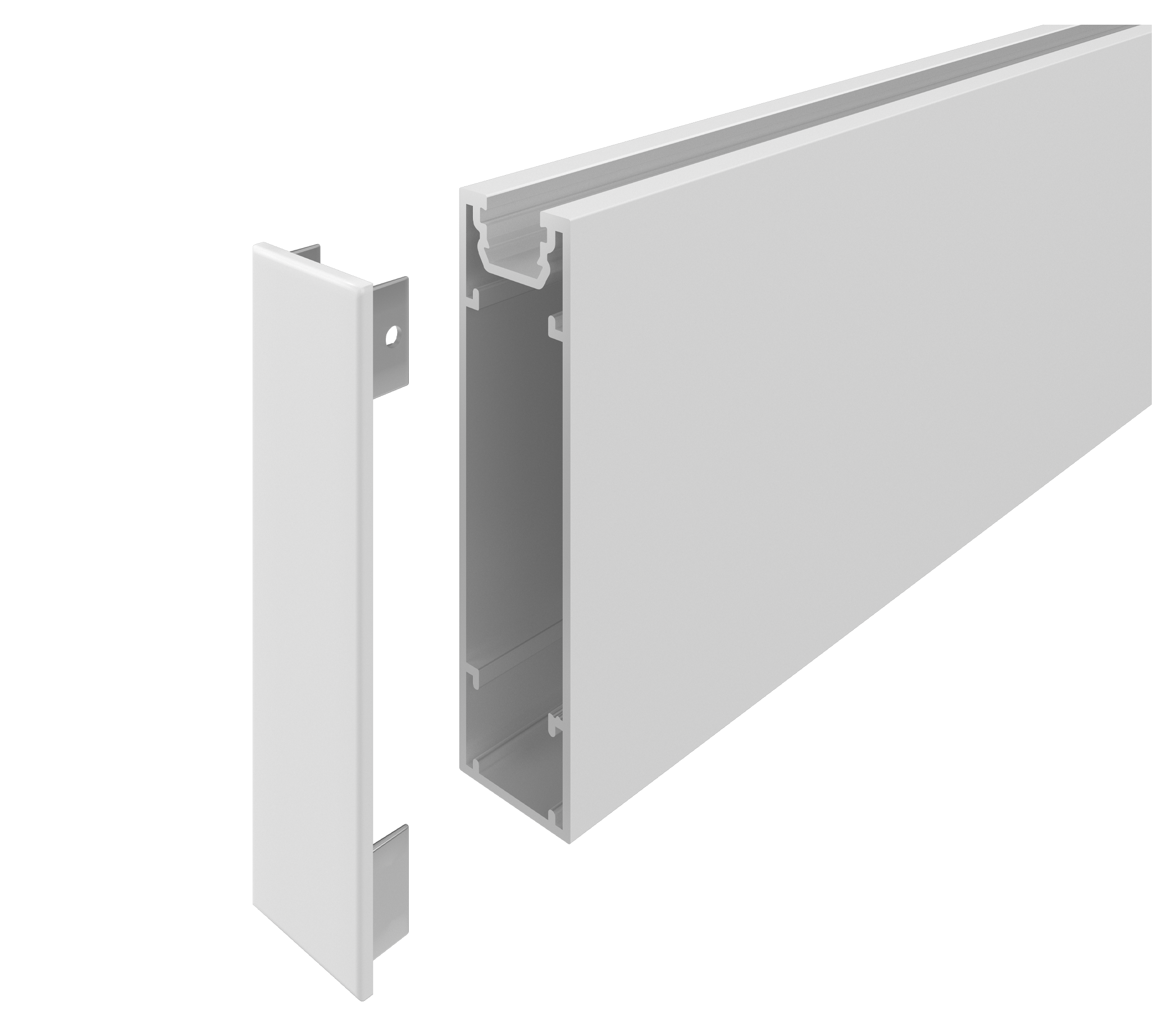

End Caps
Where Apollo Aluminum Batten ends are visible, it may be advisable to add end caps for a seamless look. These are supplied at an additional charge and are powder coated closest to match the finish of the battens. Installation is easy, with a simple push-fit connection.
End Junctions
Angle End-Stop:
Base Angle
Anti-slip:
Services Integration
Services which integrate into the Apollo aluminium batten system must not exceed 3kg/m3, and any weights over 3kg/m3 must be self-supporting.
Get in touch to discuss your options. For further detailing and integration of services, we recommend you visit our Resources Hub where we have a number of drawings and examples of different detailing scenarios. If you can't find something you're looking for in the Hub, reach out to our team who will be more than happy to provide recommendations.
Installation
Typical Installation Set Up

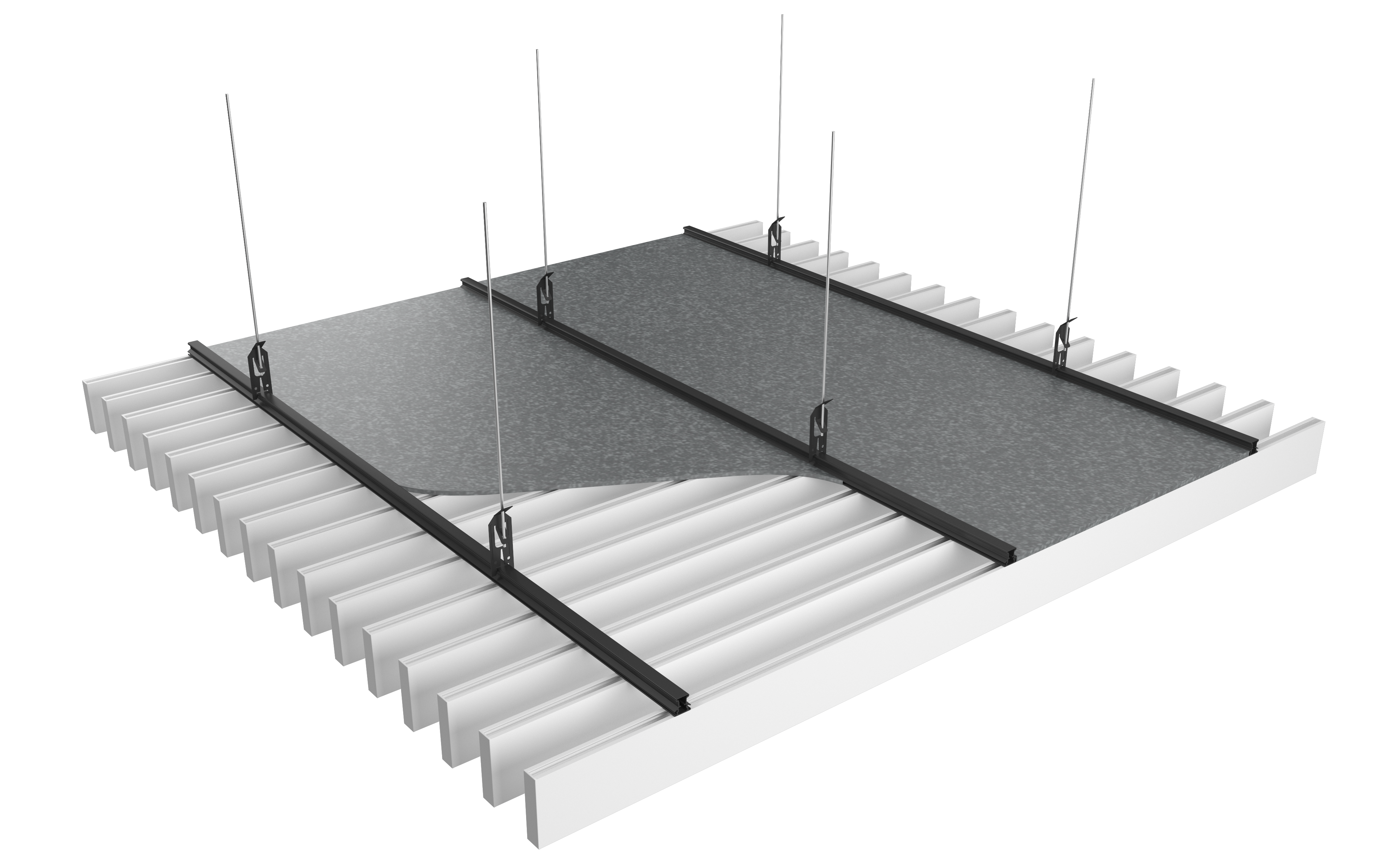

Ceiling Application:
Wall Application:
Fixing Spans
Our recommendation is that both Wall Track and Ceiling Top Cross Rails are installed at no greater than 600mm centers (see earlier diagrams in typical set-ups). This is intended as a guide only.
We recommend all projects are reviewed by either an independent or on-site engineer to confirm that spans are suitable for your site-specific conditions. We are happy to provide square meter weights for our system as required.Please contact your MBS representative if required.
Maximum Cantilever
The maximum cantilever recommended for the Apollo Aluminum battens of any profile size is 300mm. Cantilever refers to the distance between the lastApollo track and the end of your Apollo batten.
Access Panels

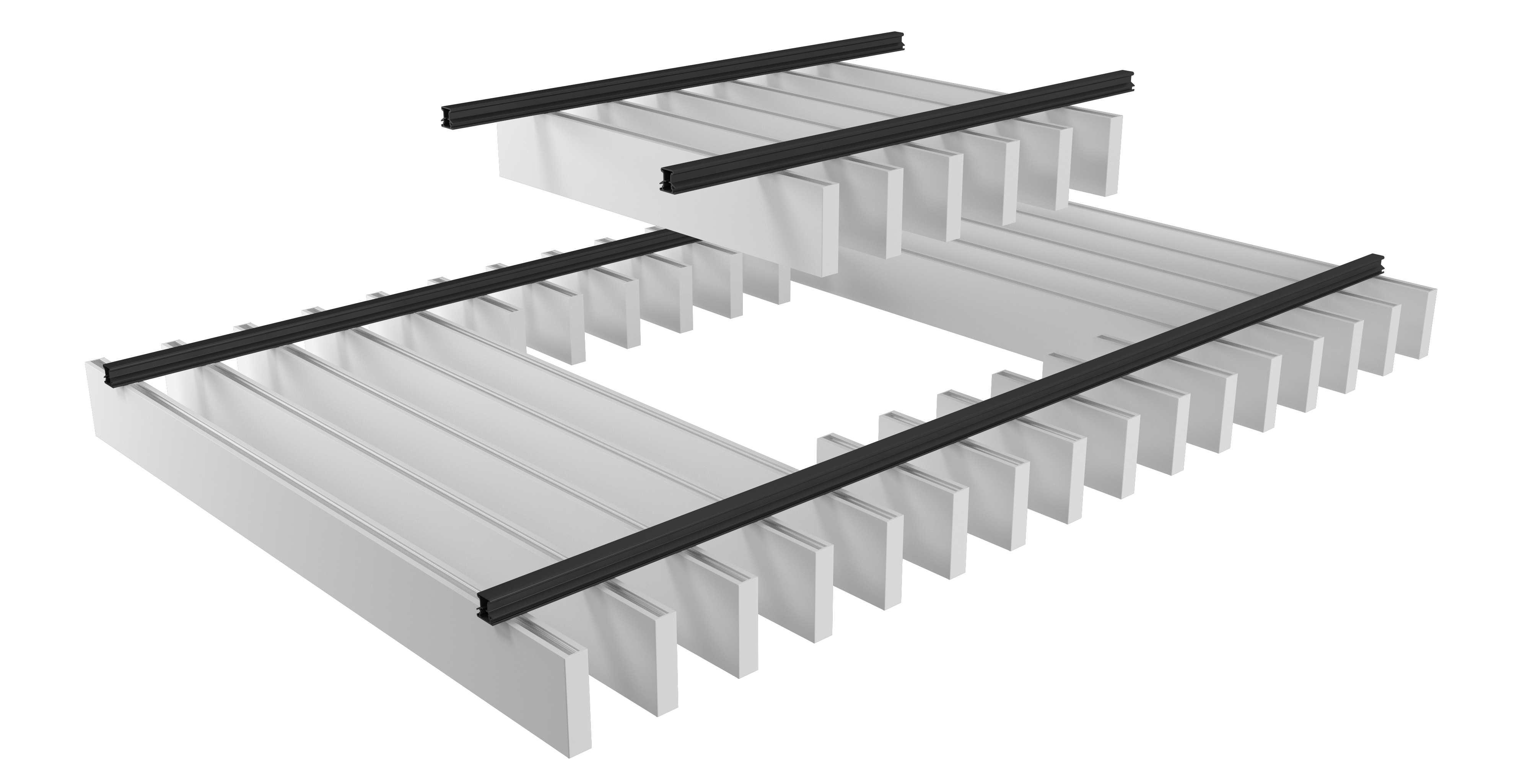

The use of a drop-in hatch is the simplest solution to providing access within an Apollo Batten Ceiling. Hatches are easy built on-site by the contractor with a typical size of 600mm x 600mm. The batten clip at each end of the Access Hatch Top Cross Rail (TCR) is to be removed.
The removal of this clip allows the TCR to sit on top of the perpendicular batten in the ceiling, without clipping in and locking in place. This ensures continuous access to the ceiling plenum above.
Access Hatch
Acoustics
Where acoustic performance is required, we supply a semi-rigid 7mm black acoustic panel. Acoustic backing is polyester and rated to meet group 1 fire compliance. When installing an Apollo Batten system with 7mm Acoustic Backing against a hard surface, an NRC of 0.25 is achieved. This can increase to an NRC of 0.50 with the addition of a 25mm air cavity behind.
Apollo tracks all come with 7mm channels that allow the Acoustic Backing to slide in between the tracks easily. Acoustic Backing is pre-cut to suit recommended track centers. This ensures easy and accurate installation. The material is flexible and further alterations can be made on-site to cut to specific sizes. If further acoustic performance is required, acoustic batts can be easily added behind the batten to increase performance (up to NRC 1.0). Please consult your MBS representative for further guidance when looking to improve the acoustic performance of your design.
Acoustic Testing | Autex Reports (Apollo)
Acoustic Insulation Datasheet | Autex Acoustic Insulation Blanket Datasheet (Apollo)
Acoustic Backing Datasheet | Autex 7mm APA Acoustic Backing Datasheet (Apollo)
Maintenance
Caring for your Apollo Aluminium Batten product correctly should greatly enhance its longevity. Below are our recommendations for extending the life of your Aluminium system. A simple regular clean will minimise the degradation of your finish from exposure to elements such as dirt and grime, which can build-up over time and be detrimental to your finish. The frequency of a cleaning regiment is dependent on a number of factors(such as environment and exposure). Our recommendation is that the Aluminium Batten system be cleaned once every twelve (12) months and a record of this cleaning is kept.
Fire Compliance
The Apollo aluminium system achieves a Group 1 rating as per Section 9(n) of AS 5637.1-2015.
The determination of the group number is based on the AS/NZS 3837-1998 test and is deemed valid in the cone calorimeter for the assignment of National Construction Code (NCC) group number.
Warranty
For interior applications, the Apollo Aluminum Batten System comes with a 10-year warranty. Please contact your MBS representative for your project specific warranty.
We make a conscious choice to use locally extruded, lower carbon aluminium, so your CO2e emissions on a project can be more than halved.
An Embodied Carbon Comparison:
Traditional supply Vs Apollo+ Aluminium
All our Apollo+ Aluminium is cleaner, not because we’re ticking a box, but because it’s the right thing to do. And we’re so committed to this, we’re offering it at the same price as standard aluminium - so our (and your) footprint is lighter.
Why Choose Apollo+?
It's called Apollo+ because it's exactly that.
A solution for your project, + a little more. No smoke and mirrors, just facts.
The carbon footprint of LocAl® Green is up to 50% less than the global average for primary aluminium production* (ex smelter based on Scope 1 and Scope 2 emissions). Whilst LocAl® Super Green boasts one of the lowest carbon emissions for primary aluminium currently available and is 75% lower than the global average for primary aluminium production.
Reducing carbon emissions from your products is important because it mitigates the effects of global climate change, improves public health, boosts the global economy, and maintains biodiversity.
When we cut carbon emissions, we help ensure cleaner air, water, and food for our generation and for generations yet to come. Choosing to use LocAl® Aluminium as part of a responsible procurement strategy for your business will positively impact your organisation’s environmental impact and our climate.
Lower your footprint, do the right thing
